Name: Outdoor Waterproof Sunscreen HD P8 LED Display Large Screen Double Sides Advertising Led Billboard Outdoor Led Display Screen
Brand: Shenzhen Uhled Technology Co., Ltd.
SKU: UHLED-P8
Availability: InStock

Home Products Hot Sales Products

Outdoor Waterproof Sunscreen HD P8 LED Display Large Screen Double Sides Advertising Led Billboard Outdoor Led Display Screen

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	UHLED
Model Number:	UHLED-P8

Contact Now

Detailed Product Description

Application:	Outdoor	Pixel Pitch:	P8, P8
Warranty:	5 Years	Material:	Die Casting Aluminum
Size:	960*960mm, Customized Product	Color:	Full Color
Voltage:	100-240V	Dimensions:	960x960
Supplier Type:	ODM, Agency, OEM, Original Manufacturer	Control Method:	COMPUTER, Remote Control, Remote Controller, WIFI, Wireless Remote Control
Touch Screen:	No Touch	Mounting Type:	Outdoor, Wall, Wall Mount, Hanging, Wall Mounted, WALL MOUNTABLE, Wall-mounted, Pole Mounted, Fixed To The Wall
Content Management System:	Yes, Built-in CMS, Cloud-Based CMS	Remote Device Management:	SNMP Support, Firmware Over-The-Air（FOTA）, Remote Content Management, Real-Time Status Monitoring, API Integration, Cloud-Based RDM Platform, Remote Power Control, Alarm & Notifications, User Role Permissions
Usage Environment:	Outdoor, External	Media Available:	Datasheet, Photo, EDA/CAD Models, Other
Use:	Advertising Publish, Shopping Mall, Airport, Outdoor Led Display, Outdoor Led Screen, Led Billboard, Led Screen Outdoor	Function:	SDK
Pixels:	8mm	Specification:	Led Billboard, Led Screen Outdoor
Screen Type:	No Touch	Brightness:	6000CD
Aspect Ratio:	1:1	Pixel Density:	15625
Display Coating:	AG (Anti-Glare), AR (Anti-Reflection)	Operating Temperature:	-20 °C ~ 70 °C
Color Depth:	10-bit	Lifespan (hours):	100000h
Ip Rating:	Ip66	Installation Type:	Wall Mount
Product Name:	Outdoor Digital Signage	Usage:	Outdoor Adverting Display
Keyword:	Waterproof LED Display Screen Panels	Display Function:	Video/Text/Picture/Time/3D Text/Office/SWF
Installation:	VESA Standard Mounting Hole	Certificate:	CE ROHS FCC ETL CB
Refresh Rate:	1920Hz-3840Hz

	Specification
Pixel Pitch：	P4.4	P5.7	P6.67	P8	P10
LED Configuration：	SMD2727	SMD2727	SMD2727	SMD2727	SMD2727
Pixel Density：	51625dot/m²	30625dot/m2	22500dot/m2	15625dot/m	10000dot/m
Module size：	480*320mm	480*320mm	480*320mm	480*320mm	480*320mm
Module Resolution：	109*72 dot	84*56 dot	72*48 dot	60*40 dot	48*32dot
Cabinet Size：	96096077mm	96096077mm	96096077mm	96096077mm	96096077mm
Cabinet Resolution：	218*218dot	168*168dot	144*144dot	120*120dot	96*96dot
Cabinet Weight：	24.5kg	24.5kg	24.5kg	24.5kg	24.5kg
IP Rating ( front/back)：	IP66	IP66	IP66	IP66	IP66
Brightness Intensity：	>6500 CD/m2	>6500 CD/m2	>6500 CD/m2	>6500 CD/m2	>6500 CD/m2
Viewing Angle (H/V)：	140°/140	140°/140	140°/140	140°/140	140°/140
View Distance：	＞4m	＞5m	＞5m	＞5m	＞5m
Gray Scale:	14bit	14bit	14bit	14bit	14bit
Display Scale:	16.7M	16.7M	16.7M	16.7M	16.7M
Brightness Adjustment:	0-100 levels adjustable	0-100 levels adjustable	0-100 levels adjustable	0-100 levels adjustable	0-100 levels adjustable
Max.Power Consumption:	650W/㎡	650W/㎡	650W/㎡	650W/㎡	650W/㎡
Ave.Power Consumption:	200W/㎡	200W/㎡	200W/㎡	200W/㎡	200W/㎡
Drive Mode:	1/7S	1/7S	1/6S	1/4S	1/2S
Refresh Frequency:	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ
Gamma Correction:	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0
Environmental:	OUTDOOR	OUTDOOR	OUTDOOR	OUTDOOR	OUTDOOR
Control Mode:	Synchronous display with control PC by DVI	Synchronous display with control PC by DVI	Synchronous display with control PC by DVI	Synchronous display with control PC by DVI	Synchronous display with control PC by DVI
Support Input:	Composite,S- Vido,Component,VGA,DVI,H DMI,HD_SDI	Composite,S- Vido,Component,VGA,DVI,H DMI,HD_SDI	Composite,S- Vido,Component,VGA,DVI,H DMI,HD_SDI	Composite,S- Vido,Component,VGA,DVI,H DMI,HD_SDI	Composite,S- Vido,Component,VGA,DVI,H DMI,HD_SDI
Operation Power:	AC100~240 50/60HZ	AC100~240 50/60HZ	AC100~240 50/60HZ	AC100~240 50/60HZ	AC100~240 50/60HZ
Operating Temperature:	-20℃~+50℃	-20℃~+50℃	-20℃~+50℃	-20℃~+50℃	-20℃~+50℃
Operating Humidity:	10~95% RH	10~95% RH	10~95% RH	10~95% RH	10~95% RH
Operating Life:	100,000hours	100,000hours	100,000hours	100,000hours	100,000hours

Full Aluminum Energy Outdoor LED Display

Module

Module Size：480x320mm Pixel Pitch: P4.4/P5.7/P6.66/P8/P10

Waterproof rating: IP66 Brightness: ≥6500CD

Product Details

Linear design,Concise style Grain design,perfect hierarchy

With partial power design,lower-power consumption,Max.is 650w/m²

Naked Eye 3D

40x320mm Small modules,80°Curved,Support arc Splicing

Curved module design, make right angle splicing Support arc &right angle splicing

Product Characteristics

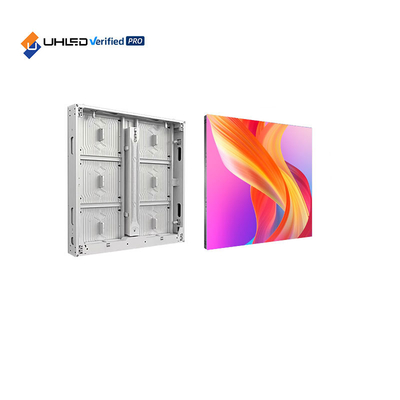

Aluminum Profile Cabinet

Aluminum cabinet, light weight, safe and reliable, no deformation.

The use of aluminum cabinets, even at high ambient temperatures, the weight of a single cabinet will not be distorted.

IP66 waterproof

IP66 waterproof No need wrapping strucre suround the screen,lower-cost

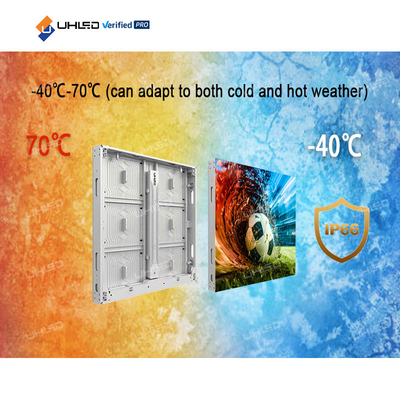

Low temperature resistance can work normally at -40℃

Accessories

Maintenance Mode

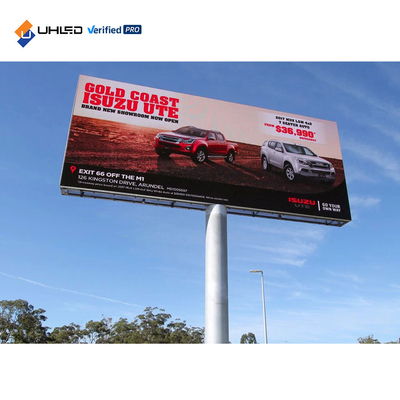

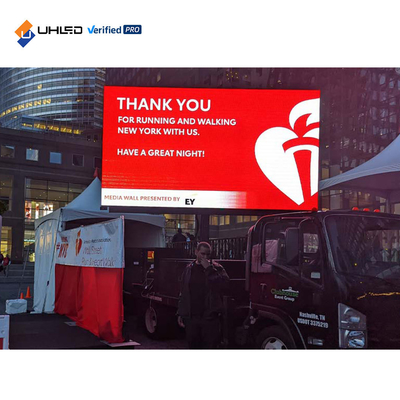

Actual Project

Factory Introduction

FAQ

Q1:What is the difference between an outdoor full aluminum energy led display and an ordinary display screen? The outdoor full aluminum energy led display screen has better protection performance and can withstand harsh environmental conditions. Q2:What are the special requirements for the installation of this display screen? It is necessary to ensure that the installation is firm, and consider factors such as waterproof, sun-proof, and windproof. Q3: In what environments can it be used? Suitable for outdoor advertising, squares, sports fields and other places. Q4: What is the service life of an outdoor full aluminum energy led display screen? Usually, under reasonable use and maintenance, the life of the lamp beads can reach 100,000 hours. Q5: How to solve the problem of display screens in high or low temperature environments? Adopt appropriate heat dissipation and insulation measures, Low temperature resistance, can work normally at-40℃ Q6:How to ensure the brightness and clarity of outdoor full aluminum energy led display screens? Ensure by adjusting parameters and regular maintenance. Q7:What is its energy-saving and environmental protection performance? Use energy-saving technology to reduce energy consumption. Q8:How to choose a suitable outdoor full aluminum energy led display screen? Consider comprehensively factors such as usage requirements, site conditions, and display effects.
