Name: IP66 Waterproof Outdoor P8 LED Billboard High Brightness Advertising LED Display Screen for Outdoor Use
Brand: Shenzhen Uhled Technology Co., Ltd.
SKU: p8mm
Availability: InStock

Home Products Outdoor IP66 Aluminum Cabinet

IP66 Waterproof Outdoor P8 LED Billboard High Brightness Advertising LED Display Screen for Outdoor Use

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	UHLED
Model Number:	p8mm

Contact Now

Detailed Product Description

Warranty:	5 Years	Type:	LED
Application:	Outdoor	Use:	Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment
Media Available:	Datasheet, Photo, EDA/CAD Models, Other	Color:	Full Color
Pixel Density:	50625	Pixels:	8mm
Product Name:	Outdoor Aluminum Digital Signage	Usage:	Outdoor Adverting Display
Brightness:	6500-9000	Certificate:	CE/ETL/FCC/ROHS/CB/PSE
Viewing Angle:	140H/120V	Cabinet Material:	Profile Aluminum
Life Span:	100000 Huors	Cabinet Size:	960*960mm
Keyword:	Waterproof Outdoor LED Display Screen

Specification
Pixel Pitch：	P5.7	P6.66	P8	P10
LED Configuration：	SMD2727	SMD2727	SMD2727	SMD2727
Pixel Density	30625dot/m2	22500dot/m2	15625dot/m	10000dot/m
Module size：	480*320mm	480*320mm	480*320mm	480*320mm
Module Resolution：	84*56 dot	72*48 dot	60*40 dot	48*32dot
Cabinet Size：	96096077mm	96096077mm	96096077mm	96096077mm
Cabinet Resolution：	168*168dot	144*144dot	120*120dot	96*96dot
Cabinet Weight：	24.5kg	24.5kg	24.5kg	24.5kg
IP Rating ( front/back)：	IP66	IP66	IP66	IP66
Brightness Intensity：	>6500 CD/m2	>6500 CD/m2	>6500 CD/m2	>6500 CD/m2
Viewing Angle (H/V)：	140°/140	140°/140	140°/140	140°/140
View Distance：	＞5m	＞5m	＞5m	＞5m
Gray Scale:	14bit	14bit	14bit	14bit
Display Scale:	16.7M	16.7M	16.7M	16.7M
Brightness Adjustment:	0-100 levels adjustable	0-100 levels adjustable	0-100 levels adjustable	0-100 levels adjustable
Max.Power Consumption:	650W/㎡	650W/㎡	650W/㎡	650W/㎡
Ave.Power Consumption:	200W/㎡	200W/㎡	200W/㎡	200W/㎡
Drive Mode:	1/7S	1/6S	1/4S	1/2S
Refresh Frequency:	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ
Gamma Correction:	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0	-5.0~+5.0
Environmental:	OUTDOOR	OUTDOOR	OUTDOOR	OUTDOOR
Control Mode:	Synchronous display with control PC by DVI	Synchronous display with control PC by DVI	Synchronous display with control PC by DVI	Synchronous display with control PC by DVI
Support Input:	Composite,S- Vido,Component,VGA,DVI,H DMI,HD_SDI	Composite,S- Vido,Component,VGA,DVI,H DMI,HD_SDI	Composite,S- Vido,Component,VGA,DVI,H DMI,HD_SDI	Composite,S- Vido,Component,VGA,DVI,H DMI,HD_SDI
Operation Power:	AC100~240 50/60HZ	AC100~240 50/60HZ	AC100~240 50/60HZ	AC100~240 50/60HZ
Operating Temperature:	-20℃~+50℃	-20℃~+50℃	-20℃~+50℃	-20℃~+50℃
Operating Humidity:	10~95% RH	10~95% RH	10~95% RH	10~95% RH
Operating Life:	100,000hours	100,000hours	100,000hours	100,000hours

Full Aluminum Energy Outdoor LED Display

Module

Module Size：480x320mm Pixel Pitch: P4.4/P5.7/P6.66/P8/P10

Waterproof rating: IP66 Brightness: ≥6500CD

Product Details

Linear design,Concise style Grain design,perfect hierarchy

With partial power design,lower-power consumption,Max.is 650w/m²

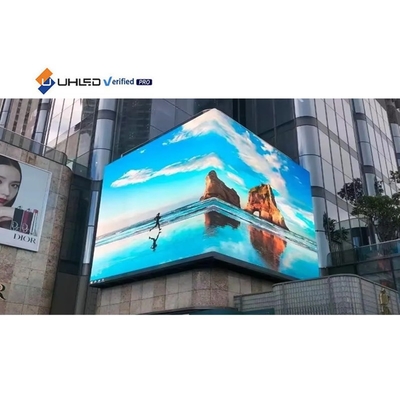

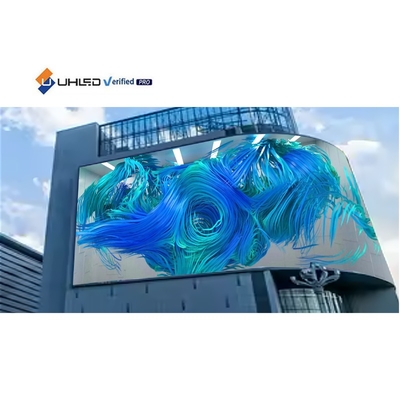

Naked Eye 3D

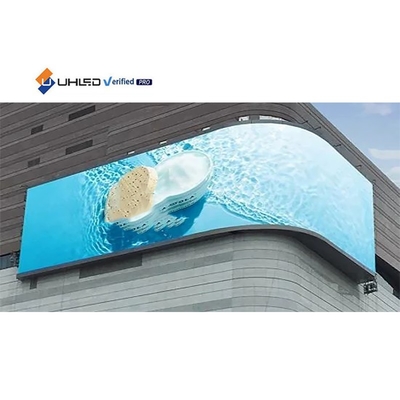

40x320mm Small modules,80°Curved,Support arc Splicing

Curved module design, make right angle splicing Support arc &right angle splicing

Product Characteristics

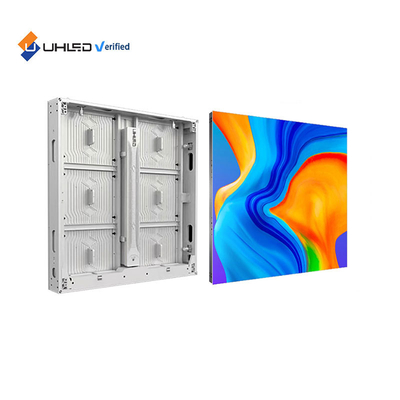

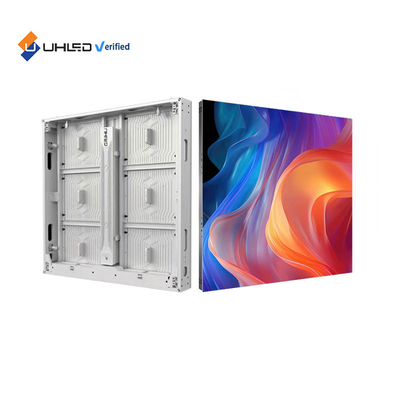

Aluminum Profile Cabinet

Aluminum cabinet, light weight, safe and reliable, no deformation.

The use of aluminum cabinets, even at high ambient temperatures, the weight of a single cabinet will not be distorted.

IP66 waterproof

IP66 waterproof No need wrapping strucre suround the screen,lower-cost

Low temperature resistance can work normally at -40℃

Accessories

Maintenance Mode

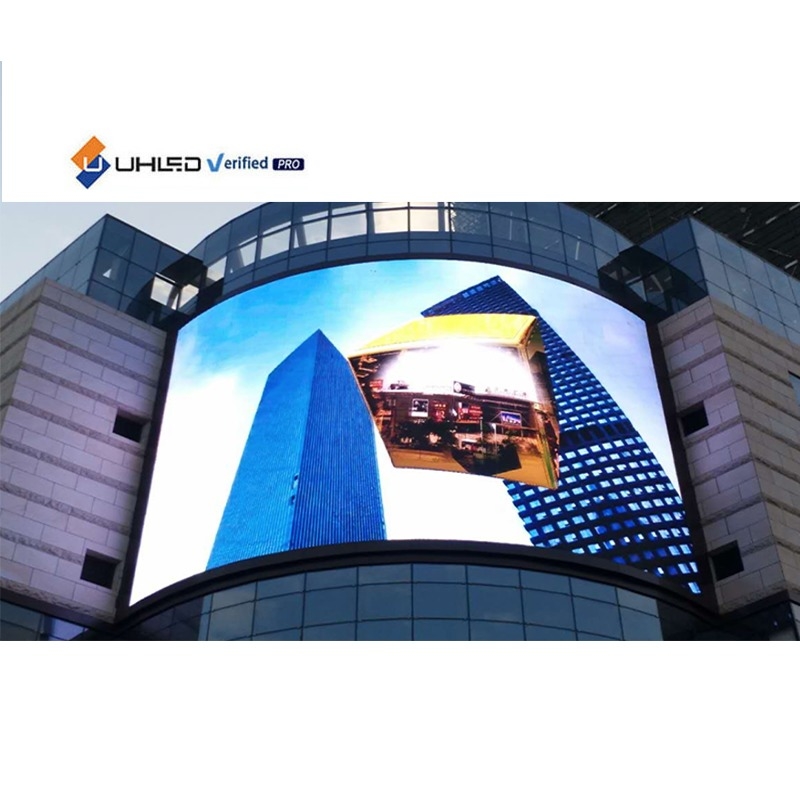

Actual Project
